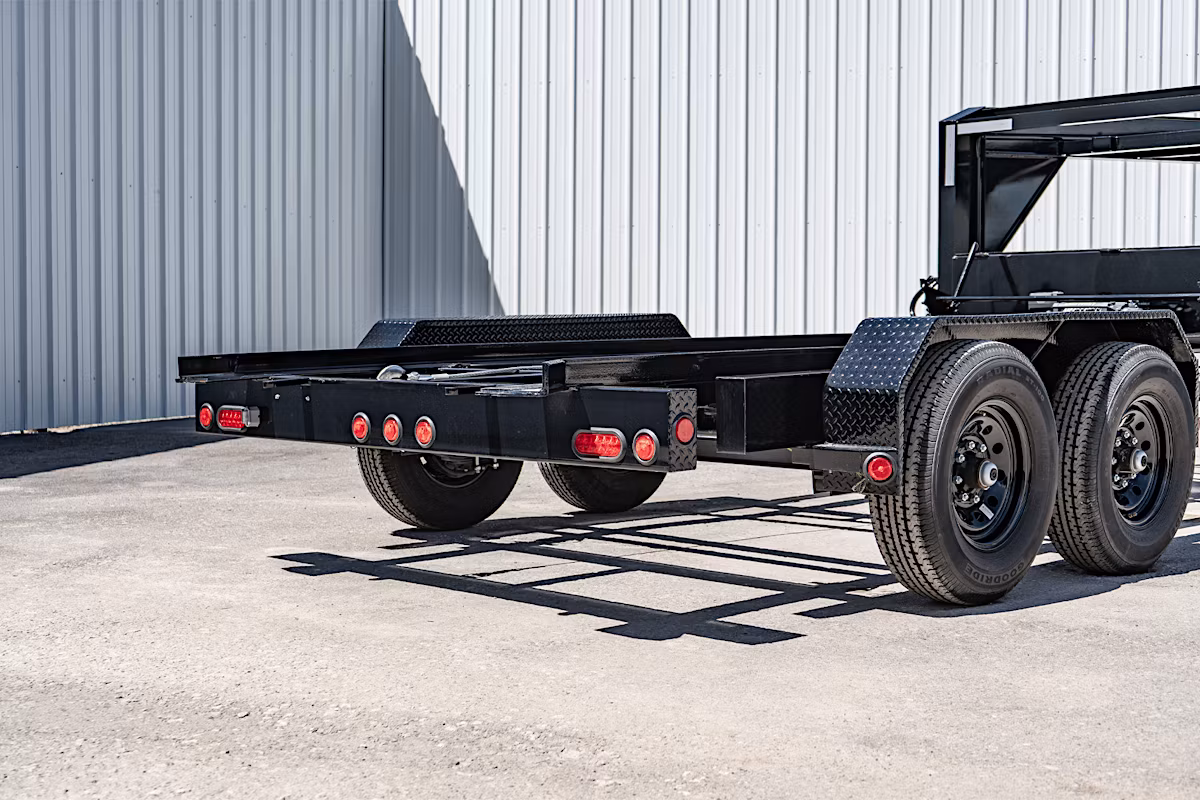

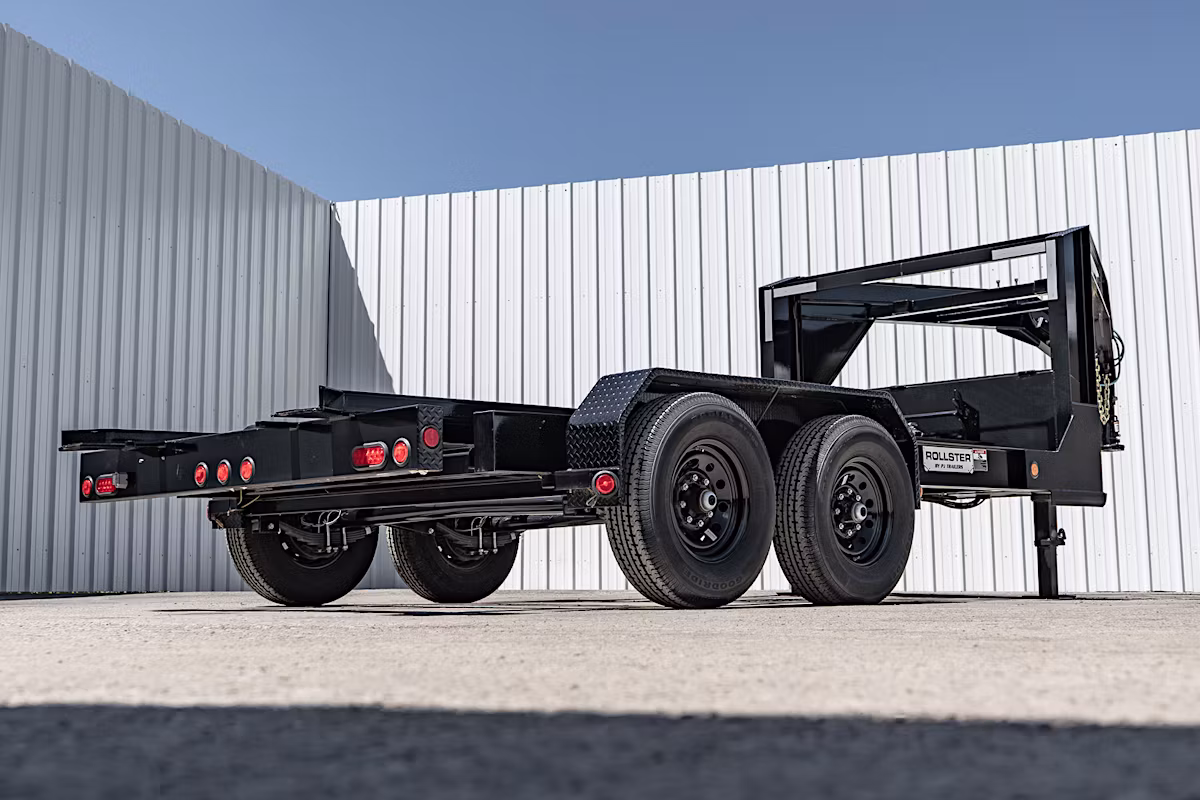

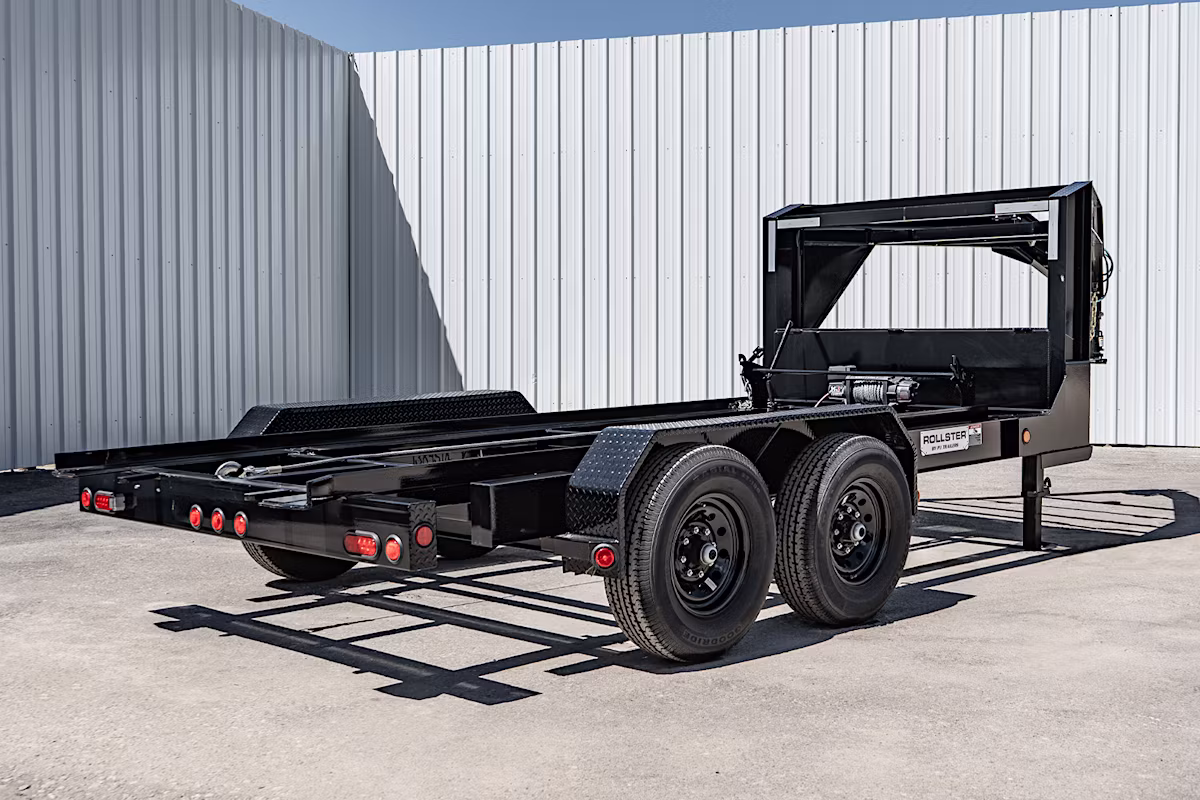

PJ Trailers DR 14′ x 83″ Rollster Roll-Off Dump Trailer

General Information

• Condition: New
• Make: PJ Trailers
• Model: DR
• Model Name: 14′ x 83″ Rollster Roll-Off Dump Trailer
• Model Code: DRS1472BSSK
• Color: Black
• VIN: 4P53D2325T1427995

Dimensions

• Length: 14 ft
• Width: 83 in

Weight Ratings

• GVWR: 15,680 lbs
• GAWR: 7,000 lbs

Trailer Construction

• Frame Type: Channel
• Frame Specification: 6″ Channel
• Crossmembers: 3″ Channel, 16″ On Center
• Fenders: 1/8″ Treadplate Steel
• Tail: Straight

Coupler

• Type: Gooseneck

Axles & Suspension

• Axles: Tandem
• Suspension: Spring Suspension
• Brakes: Dual Electric Drum Brakes

Wheels & Tires

• Tires: 235/80R16
• Wheels: 16″ Black Mod Wheels

Lighting & Electrical

• DOT-Approved Flush-Mount Lifetime LED Lights
• All-Weather 7-Way RV Wiring Harness
• 110V Integrated Trickle Charger

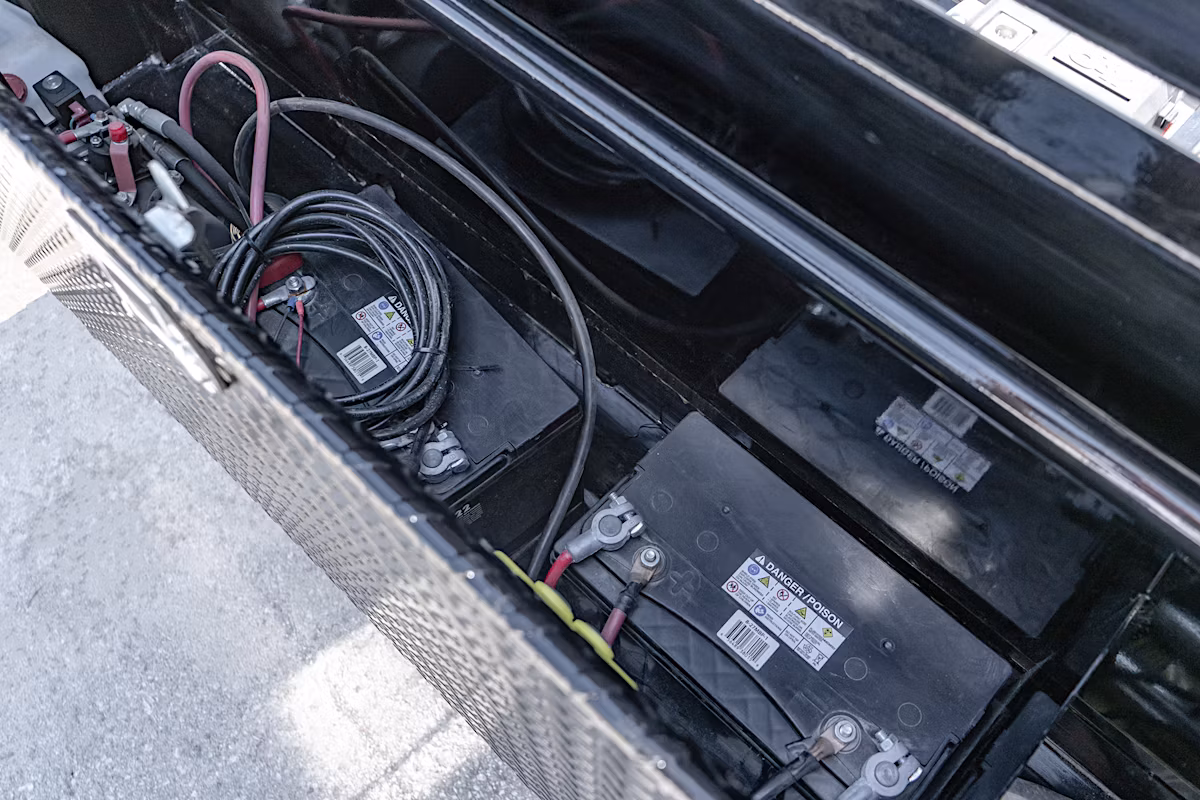

• Dual Group 27 Batteries

Loading & Dump Features

• 45° Dump Pitch

Hydraulic System

• 12V DC Hydraulic Pump
• 5″ x 21″ Hydraulic Cylinder with Scissor Lift
• 17,500 lb Winch

Jacks

• Dual 10,000 lb Spring-Loaded Drop Leg Jacks

Safety Features

• Electric Breakaway Kit with Charger

Warranty

• 5-Year Axle Warranty
