Description

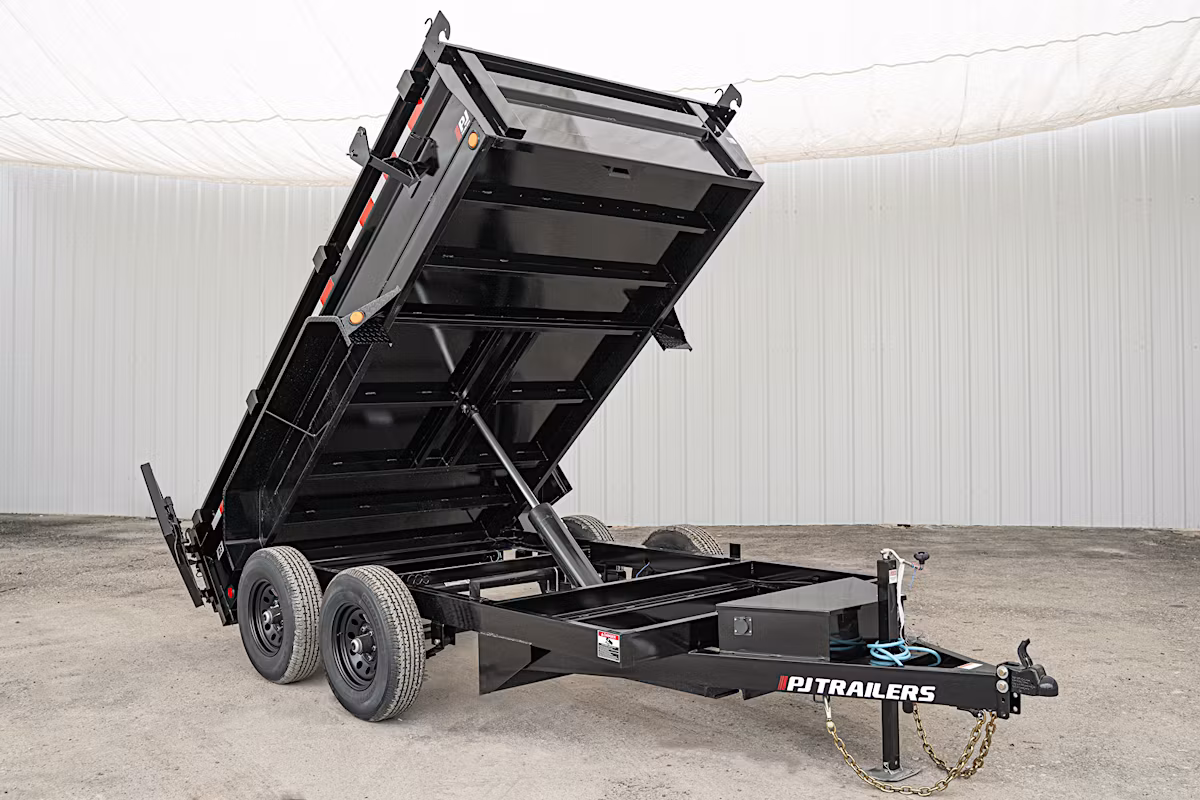

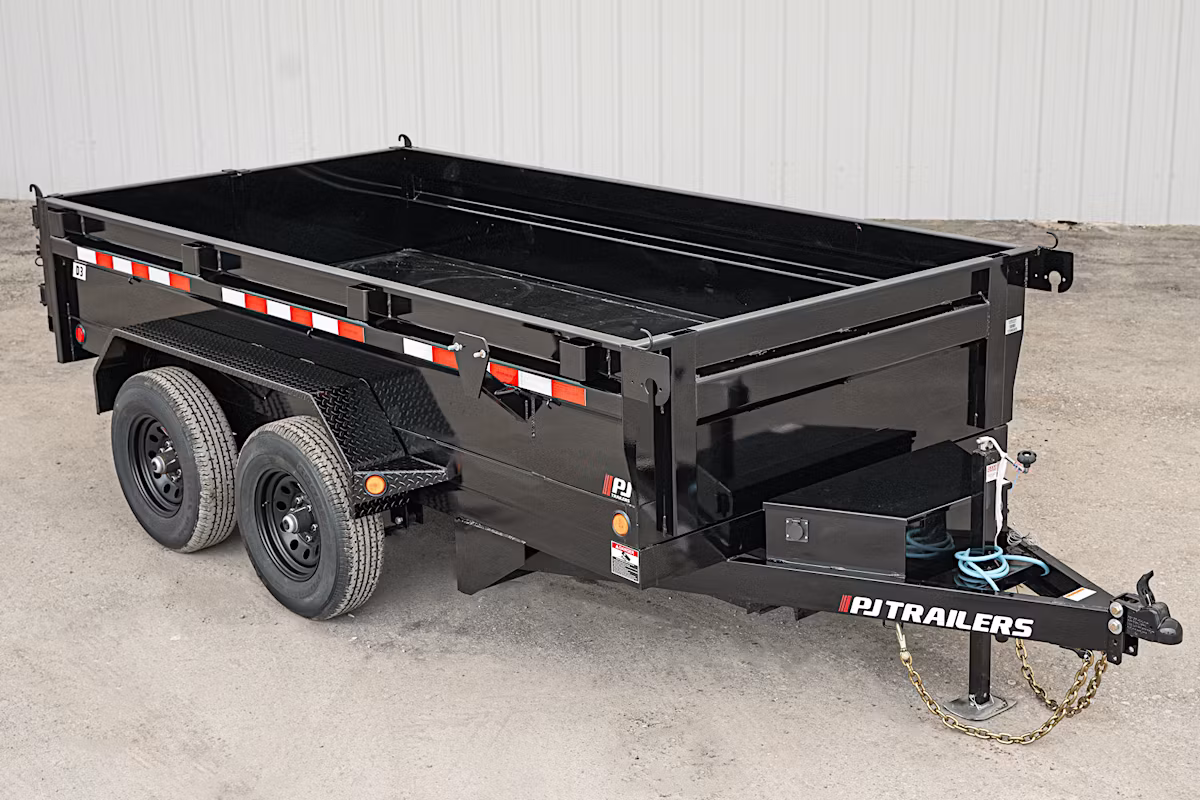

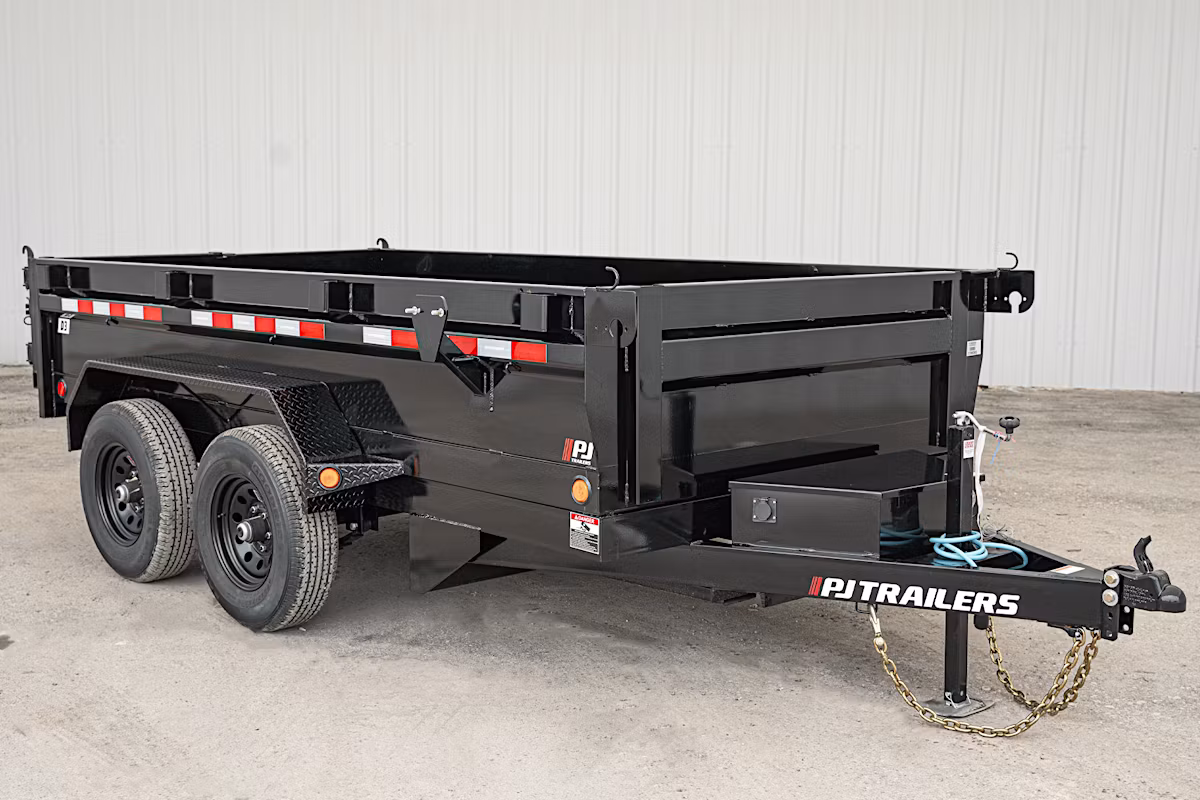

PJ Trailers D3 12′ x 72″ Hydraulic Dump Trailer with 20″ Sides

General Information

• Condition: New
• Make: PJ Trailers
• Model: D3
• Model Name: 12′ x 72″ Hydraulic Dump Trailer with 20″ Sides
• Model Code: D3J1252BSSK
• Color: Black
• VIN: 4P51D1622T1430978

Dimensions

• Length: 12 ft
• Width: 72 in
• Deck Height: 28 in
• Side Height: 20 in

Weight Ratings

• GVWR: 9,899 lbs
• GAWR: 5,200 lbs

Trailer Construction

• Frame Type: Channel
• Frame Specification: 5″ Channel Main Frame & Tongue with Toolbox
• Deck Material: 10 Gauge Steel
• Wall Material: 10 Gauge Steel
• Crossmembers: 3″ Channel, 16″ On Center
• Tail: Straight

Coupler

• Type: Bumper Pull

Axles & Suspension

• Axles: Tandem
• Suspension: Spring Suspension
• Brakes: Dual Electric Drum Brakes

Wheels & Tires

• Tires: 225/75R15
• Wheels: 15″ Black Mod Wheels

Lighting & Electrical

• DOT-Approved Flush-Mount Lifetime LED Side Marker Lights
• Interstate™ Deep Cycle Battery
• 110V Integrated Trickle Charger
• All-Weather 7-Way RV Wiring Harness
• Double-Insulated Frame Wiring Harness

Cargo & Loading Features

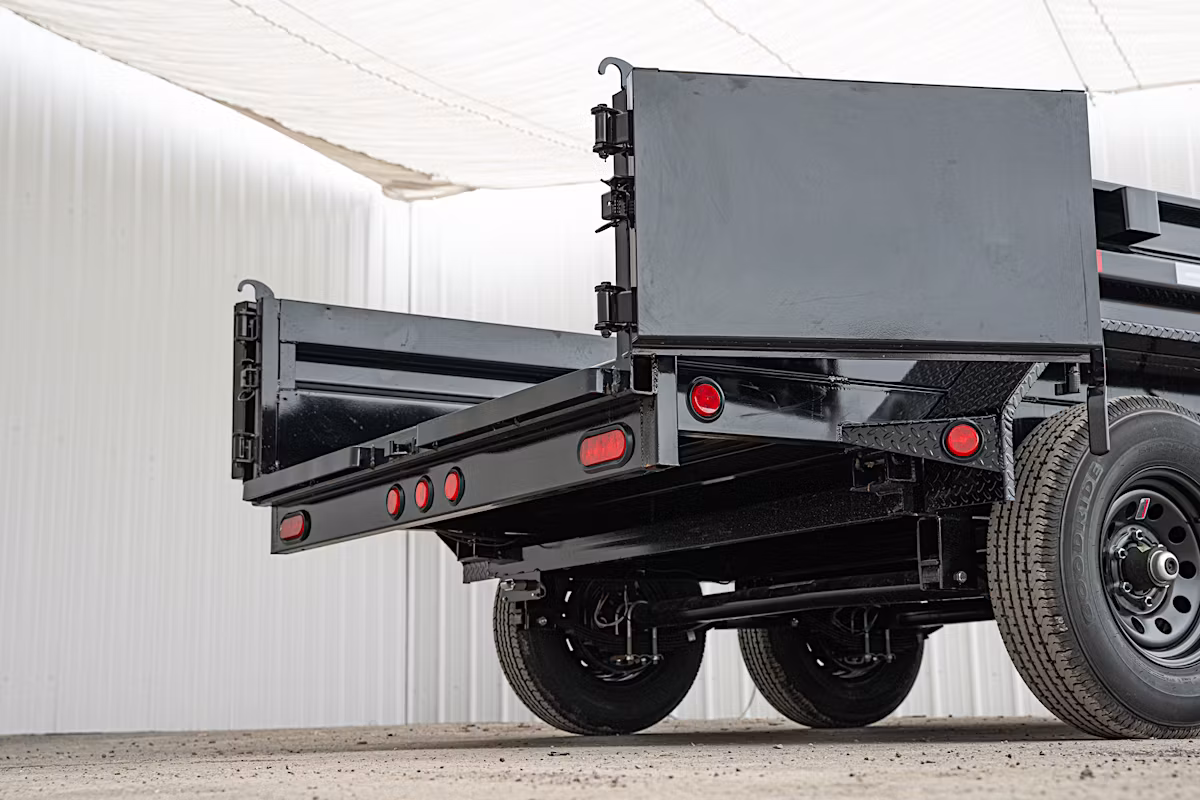

• Barn Door Gate
• Mounting Brackets for Roll-Up Tarp

Jack

• 7,000 lb Drop Leg Jack

Safety Features

• Defender 2 Electric Breakaway System with Charger

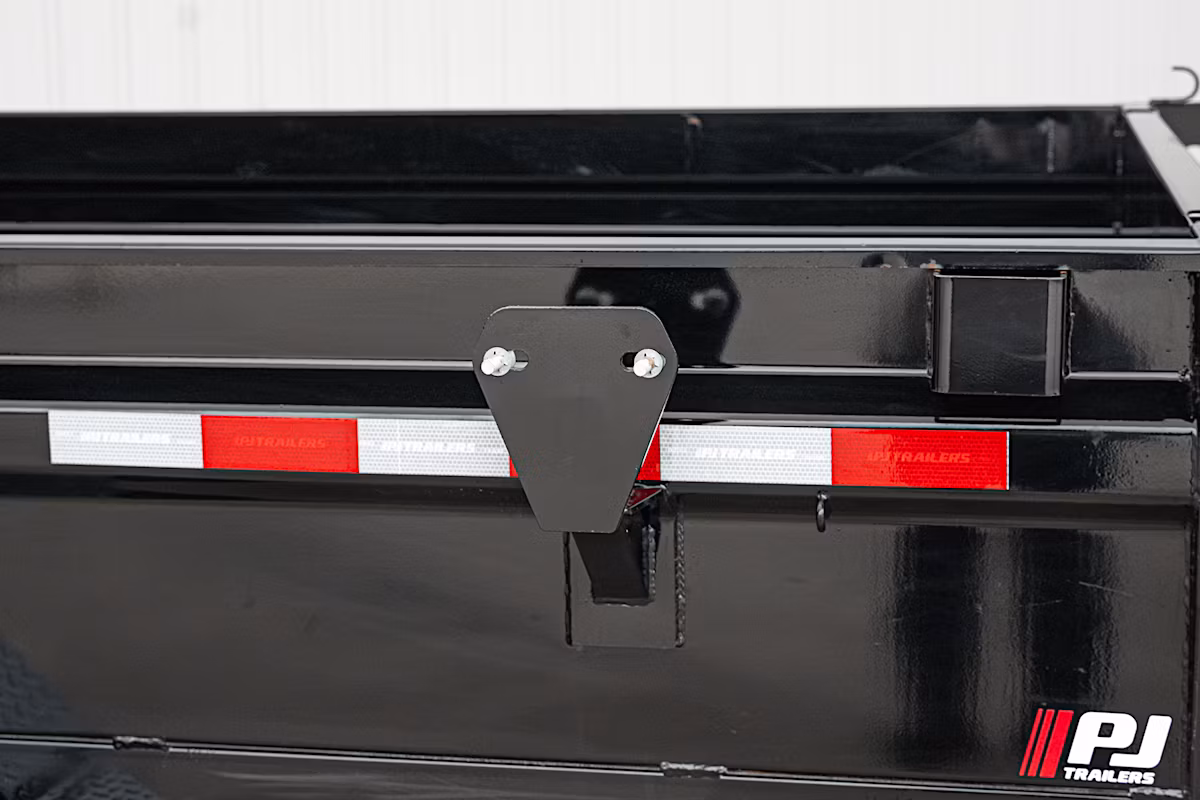

• 3M DOT-Compliant Reflective Tape

Warranty

• Axles: 5-Year Warranty
• Trailer Frame: 3-Year Warranty
• Limited Components: 1-Year Limited Warranty
