Belmont HD Deckover Equipment Trailer

Description

Highlighted Features:

• Dexter EZ Lube Axles with Self Adjusting Electric Brakes
• LED Clearance and Tail Lights
• Adjustable 2-5/16″ Ball Coupler
• 12K Bolt On, Drop Leg Jack

Standard Features:

• Heavy-Duty Steel Channel Frame
• 10” High Front Headboard
• 2” X 8” Treated Yellow Pine Floor
• 2⁵/₁₆” Adjustable Coupler
• 12K Bolt On, Drop Leg Jack
• Dexter EZ Lube Axles with Self Adjusting Electric Brakes
• Mod Wheels and Radial Tires
• Removable Zinc Plated Safety Chains with Stow Hooks
• High-Quality Urethane Paint Primer and Top Coat
• Sealed Phillips® Modular Wiring Harness
• Grommet Mounted LED Lights
• 4’ Long, High Clearance Beavertail

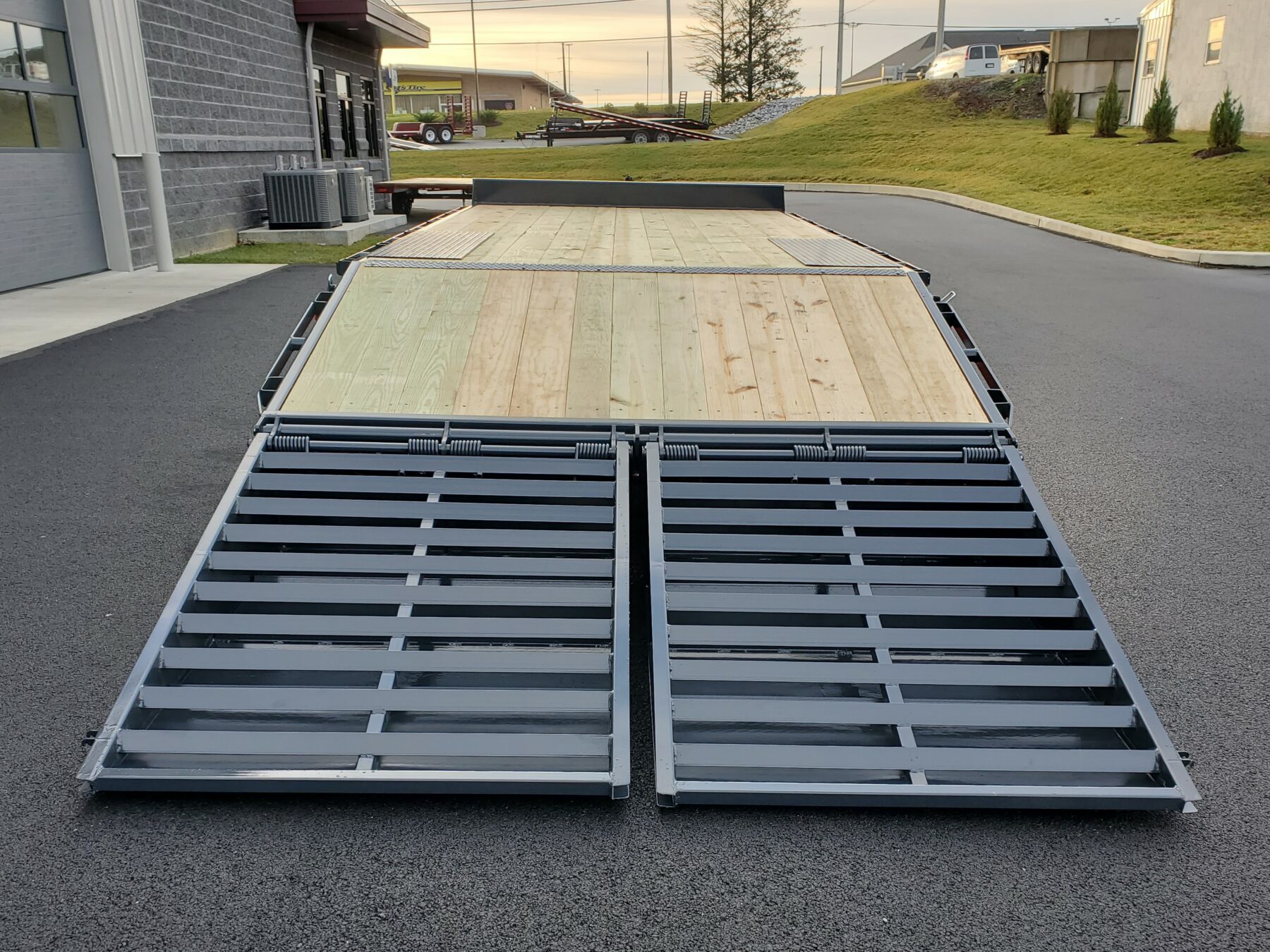

• 5’ Long Spring Assisted Ladder Ramps with Support Stands
• Full Length Rub Rail with Stake Pockets and Chain Posts
• Lockable A-Frame Toolbox

Available Sizes

• 96″ wide x 16′ flat + 4′ beavertail = 20′ long (14K, and 16K GVW)
• 96″ wide x 20″ flat + 4′ beavertail = 24′ long (14K and 16K GVW)
• 96″ wide x 26″ flat + 4′ beavertail = 30′ long (14K and 16K GVW)

Optional Features:

• Aluminum Wheels / Radial Tires
• Spare Tire and Wheel
• Torsion Axle
• Hydraulic Disc or Drum Brakes
• Surge Brakes
• 4-Bolt Pintle Ring
• 12K Hydraulic Jacks
• Twin Sidewind 12K Jacks
• 20” Wedge Ramps”
• 3rd 20” Wedge Ramp”
• Adjustable Beavertail With Slide In or Stand Up Ramps
• Full Width Wedge Ramps
• Heavy Duty Split Mesh Ramps
• Lift Up Center Beavertail
• Total Flat Deck – No Ramps or Beavertail
• Additional Trailer Length
• Additional LED Lights
• Frame Mounted Swivel Support Stands (Std. on Adjustable Beavertail)
• Underbody Windup Spare Tire Mount
• Winch Mount
• 4’’ Straps on Sliding Winch Track
• D-Rings
• Underbody Mounted Toolboxes
• Hot Dipped Galvanized Finish
