Description

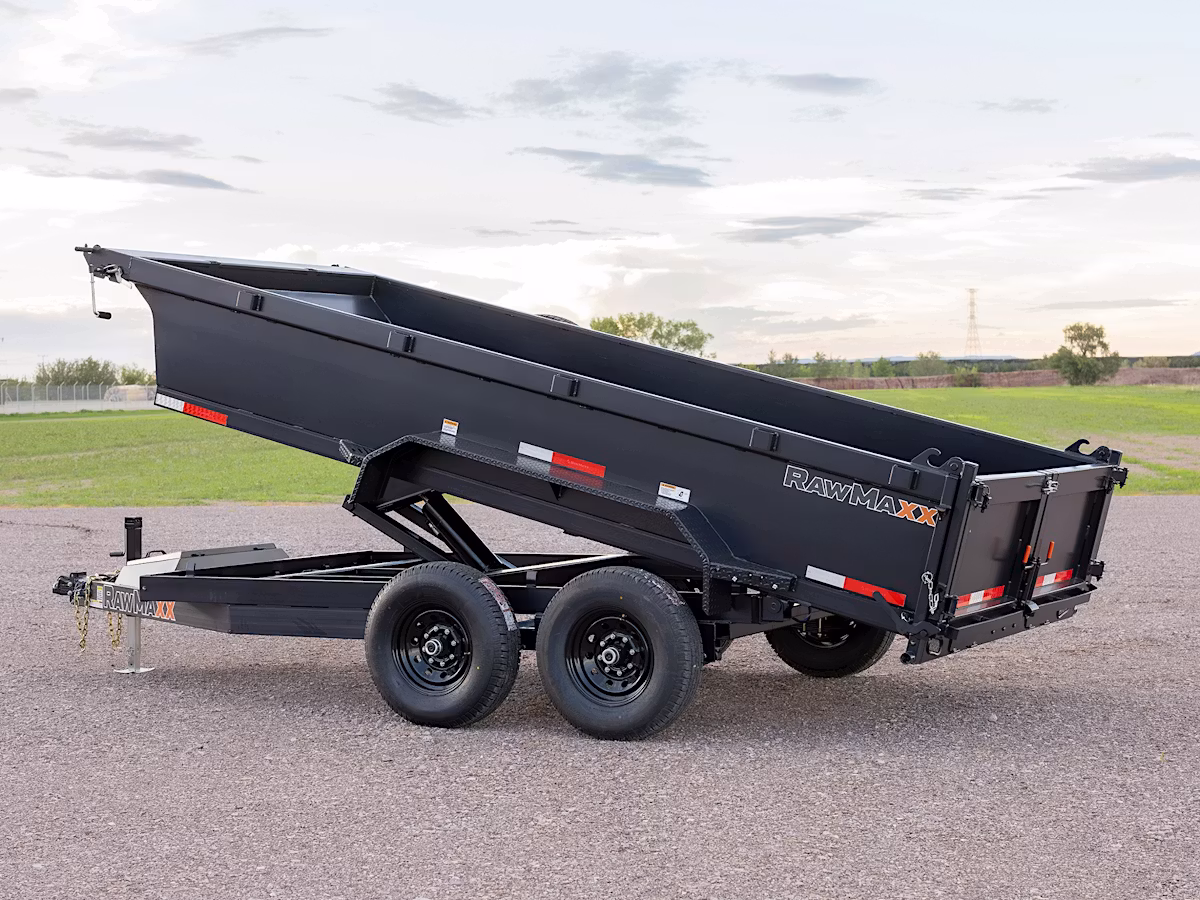

RawMaxx PKX 14′ x 83″ Scissor Lift Dump Trailer

General Information

• Condition: New
• Make: RawMaxx
• Model: PKX
• Model Name: 14′ x 83″ Scissor Lift Dump Trailer with 2′ Sides
• Model Code: 14 X83,BP5B,272B,78BM,S,SS,SM,GY,SSS2 (PKX14BP14K-GY)
• Color: Grey
• VIN: 3EVBD1423T1129742

Dimensions

• Length: 14 ft
• Width: 83 in

Weight Ratings

• GVWR: 14,000 lbs
• GAWR: 7,000 lbs

Trailer Construction

• Frame: 5″ Channel Frame
• Frame Type: Channel
• Deck Material: 10 Gauge Steel
• Wall Material: 12 Gauge Steel
• Crossmembers: 16″ On Center

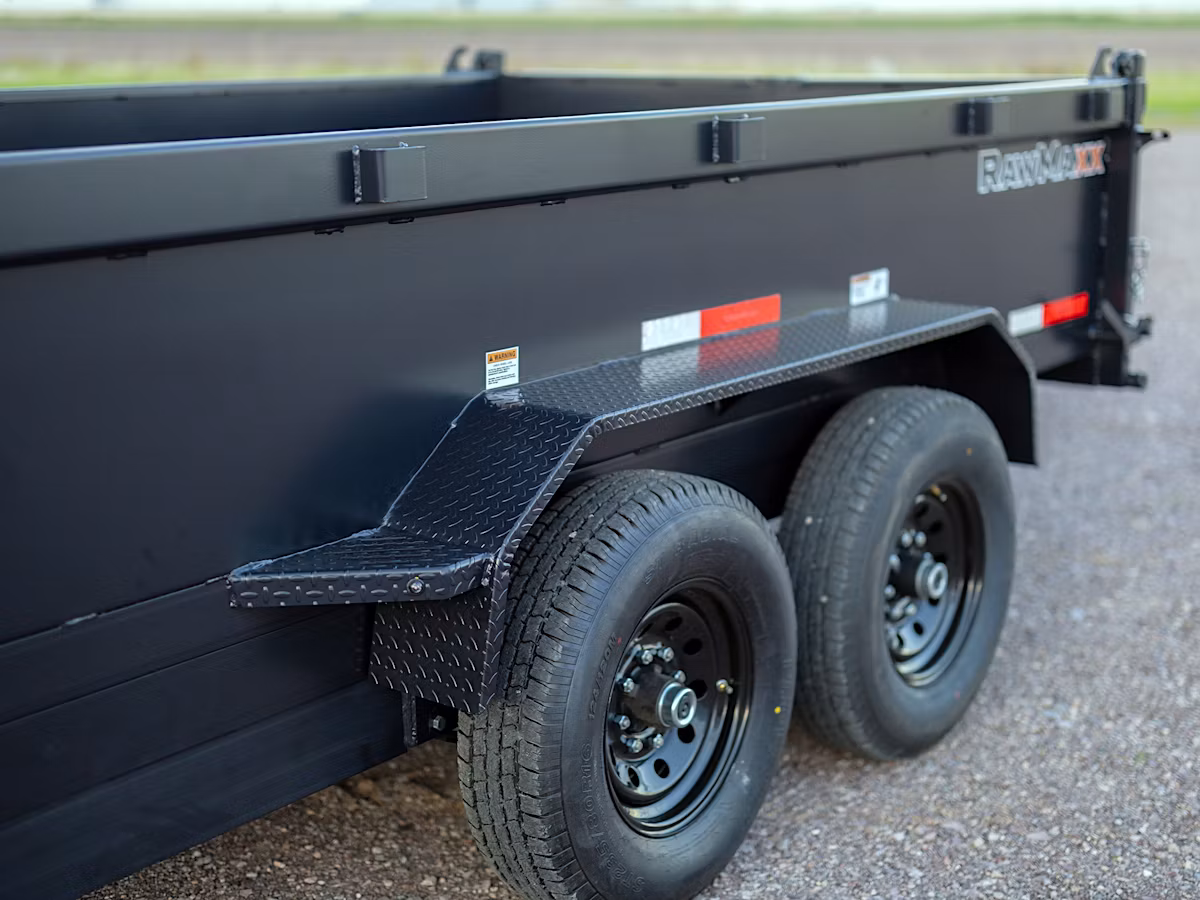

• Fenders: Diamond Plate Steel
• Tail: Straight

Coupler

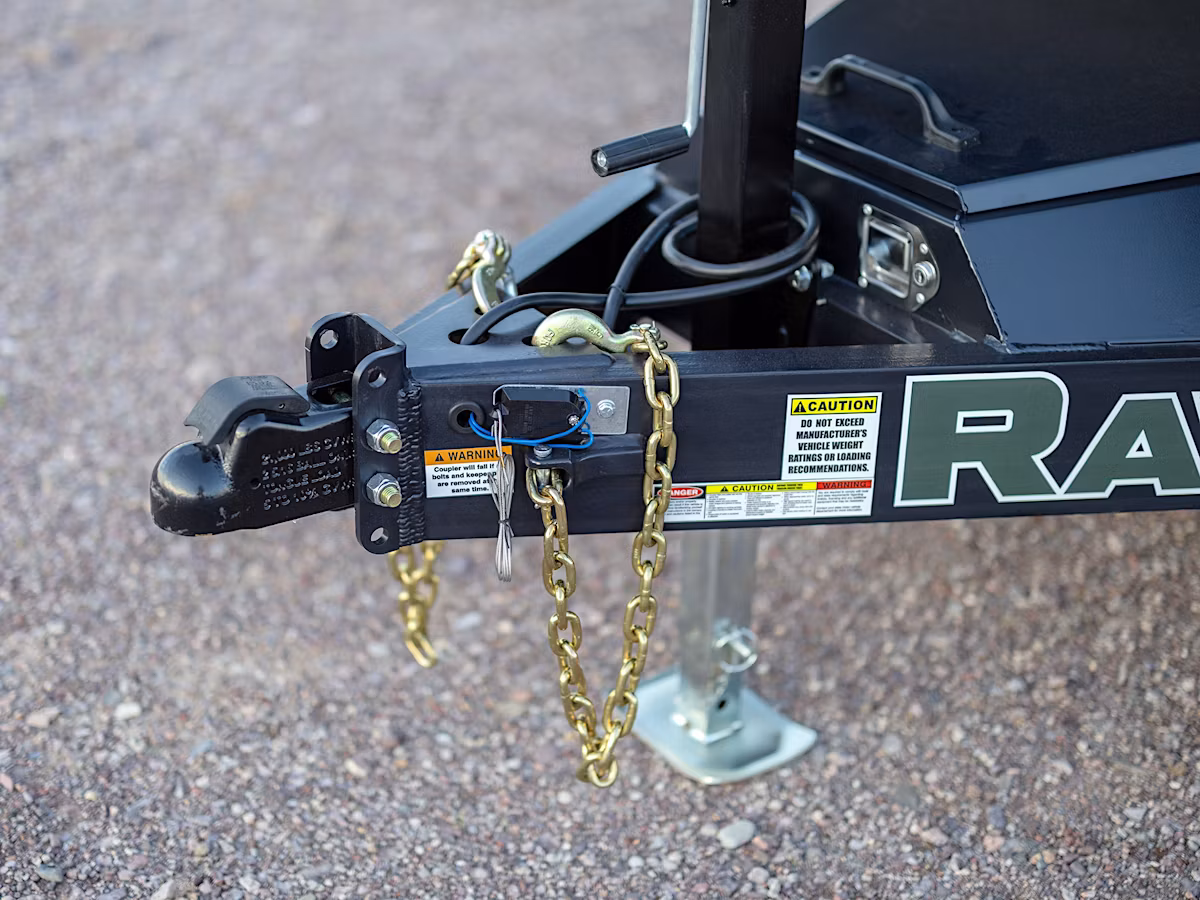

• Type: Bumper Pull

Axles & Suspension

• Axles: Tandem
• Suspension: Spring Suspension
• Brakes: Dual Electric Drum Brakes

Wheels & Tires

• Tires: ST235/80R16 10-Ply
• Wheels: 16″ Black Mod Wheels

Lighting

• All LED Lighting

Cargo & Loading Features

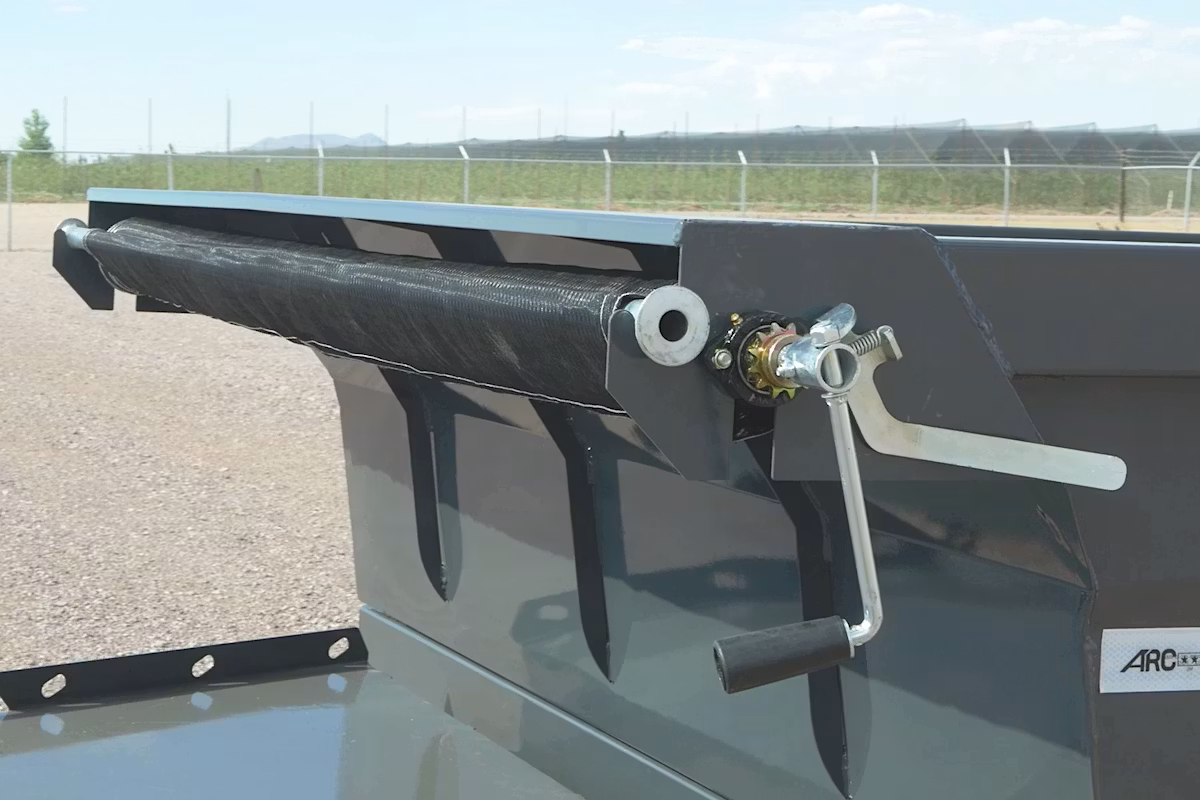

• Manual Tarp Installed
• Rear Barn Door with Spreader Gate
• 5 ft Slide-Out Loading Ramps

Hydraulic System

• Scissor Lift
• 5″ x 16″ Hydraulic Cylinder

Jack

• 7,000 lb Drop Leg Jack

Safety Features

• Safety Chains
• Electric Breakaway Kit with Charger
• DOT Reflective/Conspicuity Tape
