Description

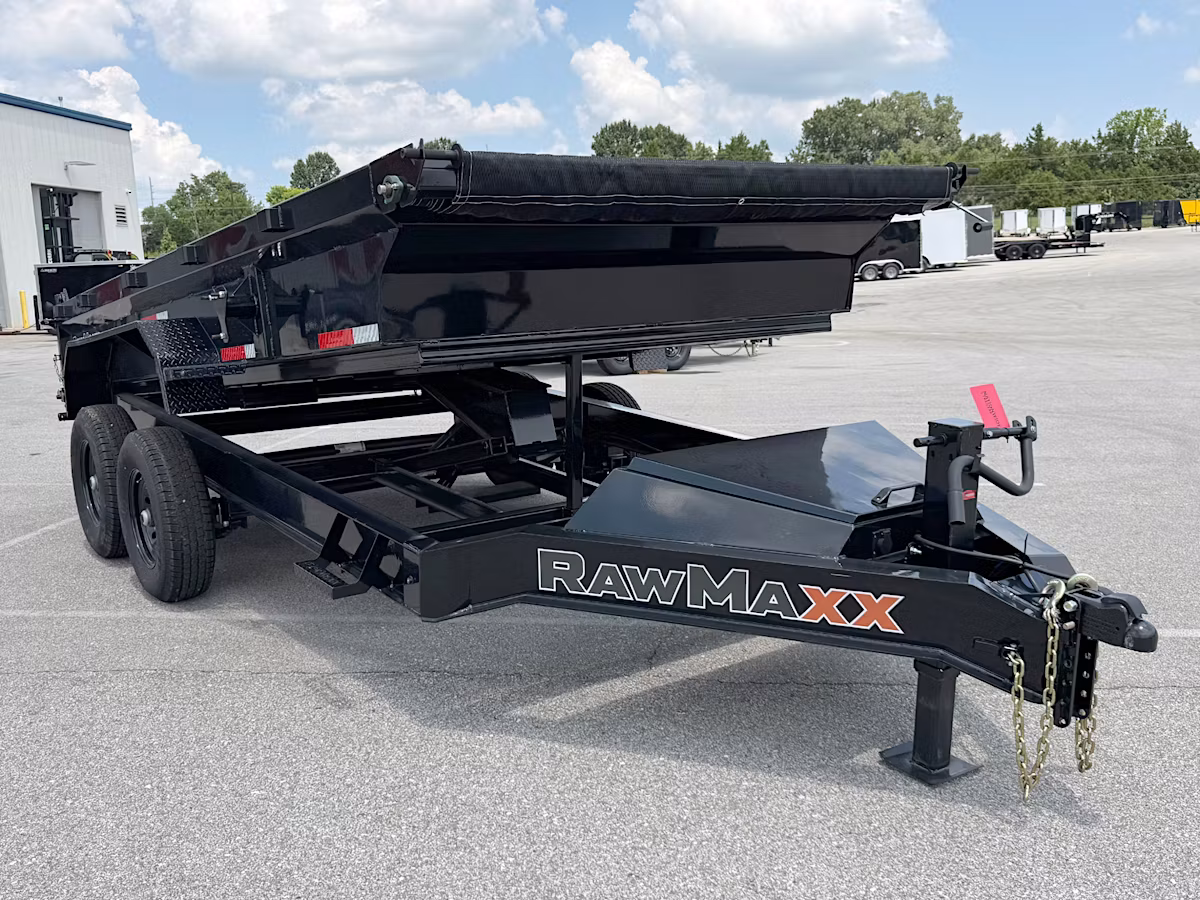

RawMaxx GDX 14′ x 83″ Dump Trailer

General Information

• Condition: New
• Make: RawMaxx
• Model: GDX
• Model Name: 14′ x 83″ GDX Dump Trailer
• Model Code: 14 X83,BP5B,272B,78BM,S,RBD,BK,SM,SW19 (GDX14BP14K)
• Color: Black
• VIN: 3EVBD1422T1126279

Dimensions

• Length: 14 ft
• Width: 83 in

Weight Ratings

• GVWR: 14,000 lbs
• GAWR: 7,000 lbs

Trailer Construction

• Frame Type: I-Beam
• Frame Specification: 8″ x 13 lb. I-Beam
• Floor: 9 Gauge Steel
• Wall Material: 12 GA Formed Steel Walls
• Crossmembers: 16″ Center Crossmembers

Coupler

• Type: Bumper Pull

Axles & Suspension

• Axles: Tandem
• Suspension: Spring Suspension
• Brakes: Electric Brakes

Wheels & Tires

• Tires: 235/80R16
• Wheels: 16″ Black Wheels
• Spare Tire: Included (5 Wheels Total)

Lighting

• LED Lighting

Cargo & Loading Features

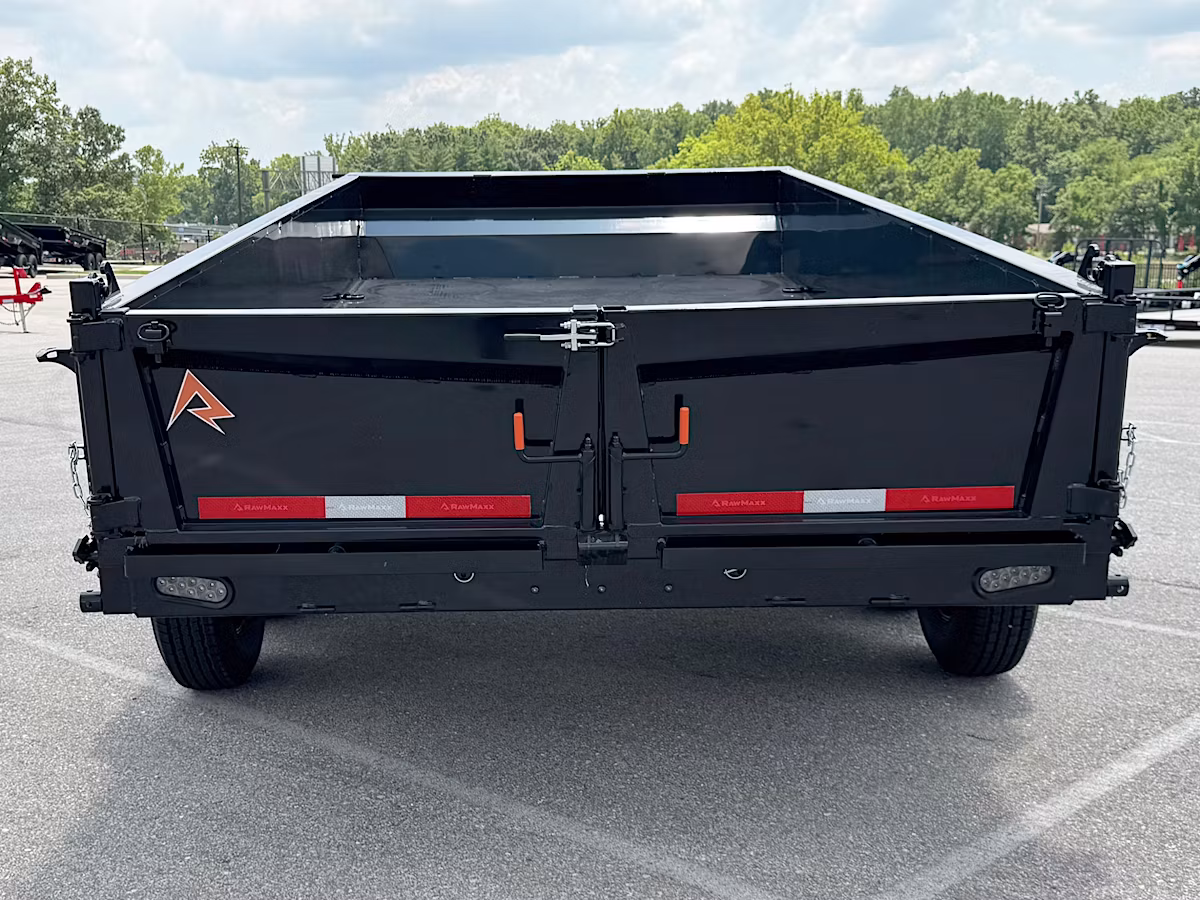

• Rear Barn Doors with Integrated Spreader Doors
• 5 ft Slide-Out Loading Ramps

Jack

• 12,000 lb Hydraulic Jack

Safety Features

• 3/8″ Heavy-Duty Safety Chains
